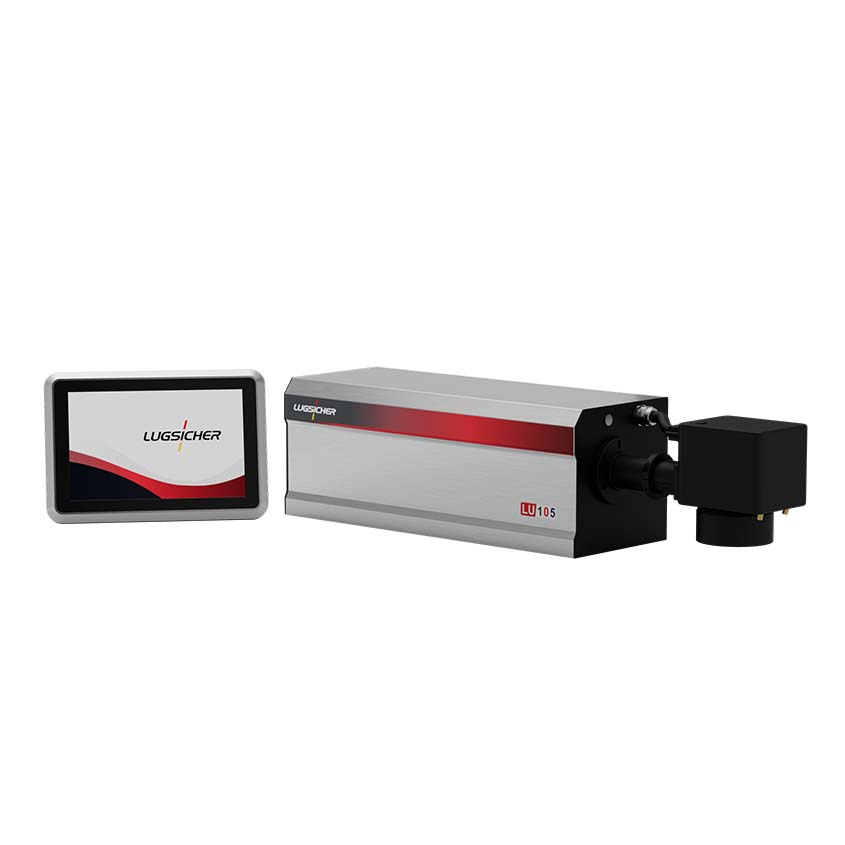

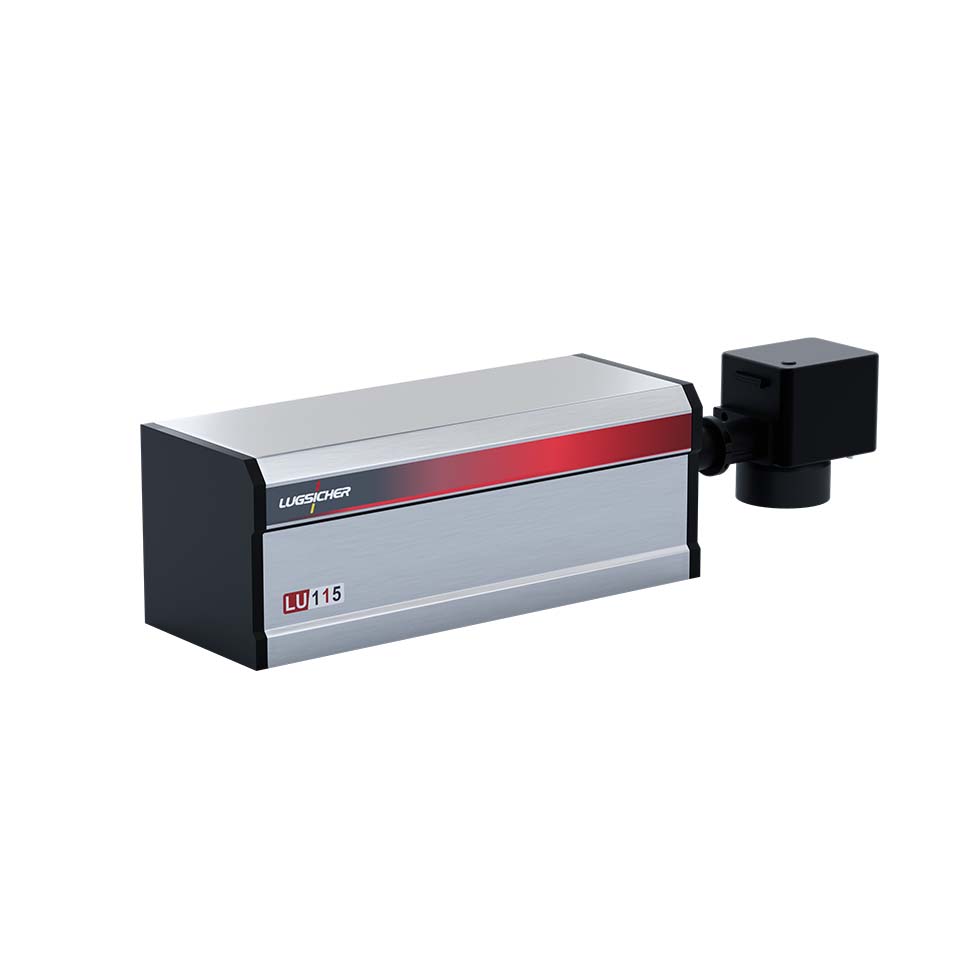

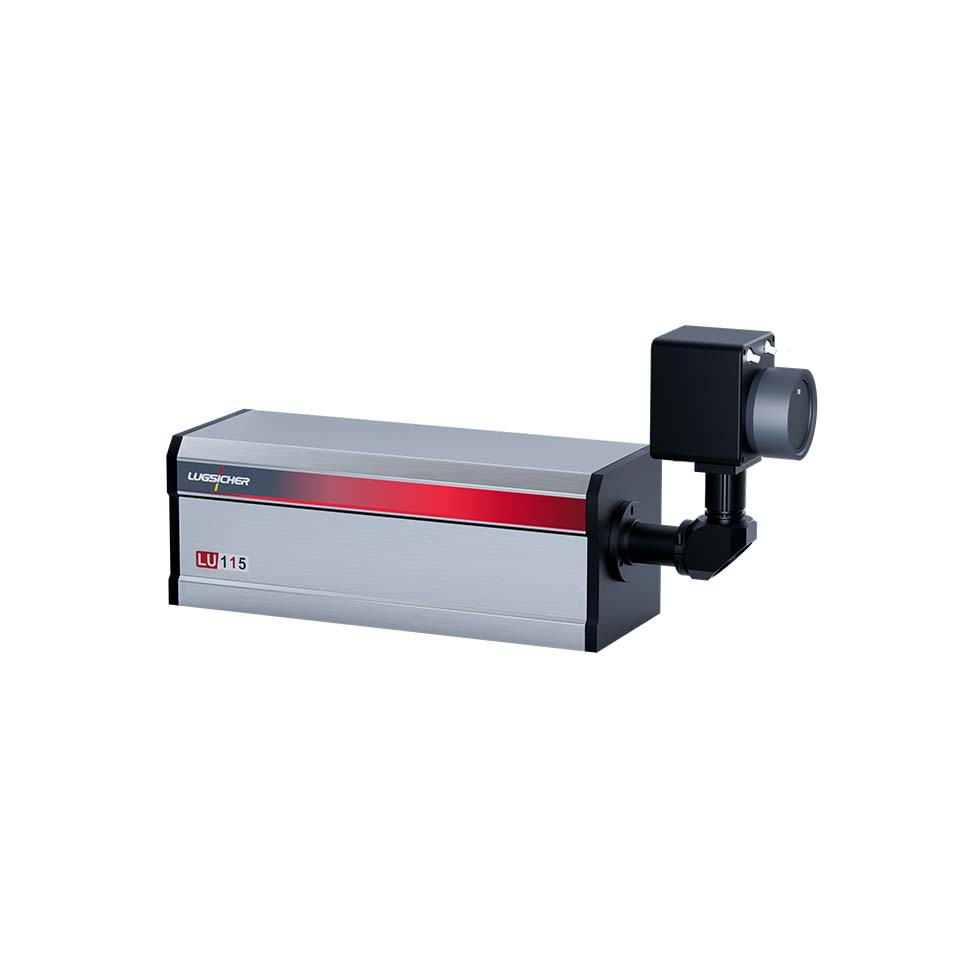

LU100 series UV laser marking system
The Luose LU100 series ultraviolet laser marking machine adopts low thermal impact technology to achieve precise and beautiful permanent marking on high-density and vulnerable materials, ensuring the integrity and damage of the substrate.Suitable for high-speed production in the food, pharmaceutical, electronics, and daily chemical industries, it can print complex QR codes and high-resolution characters without the need for ink or solvents.
Ultra high sealing performance
Aviation grade sealing effectively extends the service life of laser tubes using precision manufacturing processes, ensuring the stability of laser beam output
Intelligent interactive system
Automatically activate the path simulation system before printing, plan the marking path in advance to improve printing efficiency. After determining the printing content and parameters, the maximum printing speed is automatically calculated to accurately match the production line capacity
Multiple precision protections
The core optical components are designed with multiple sealing protections to effectively isolate dust, oil, and small particles from entering, ensuring long-term stable operation of the core components in harsh industrial environments
Sample effect
Glass marking
glass
Laundry detergent bottle label
plastic
Beverage bottle cap
plastic
Glass medicine bottle labeling
glass
Circuit board marking

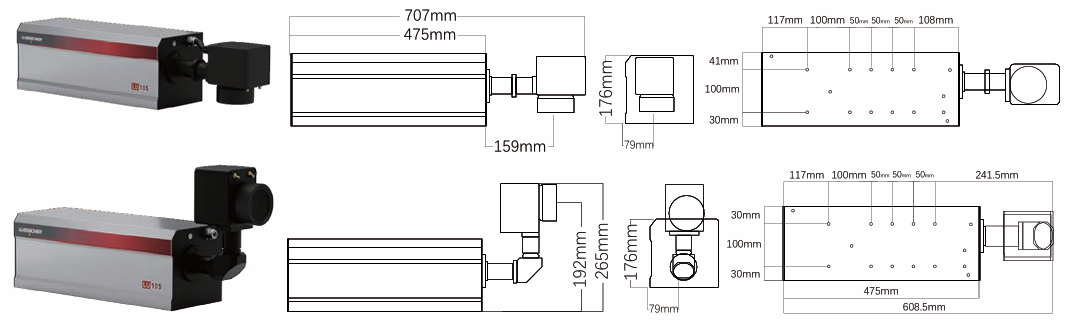

electronic componentProduct dimensions
Specifications
| interface | -Control System: LugTec Operating System - Display Screen Size: 10.1 inches |
|---|---|
| Standard and optional | Standard configuration: Host, 2D aluminum alloy laser machine adjustment bracket, 10.1-inch external touch screen, fiber optic eye, universal adjustment eye. Standard configuration: Host, 2D aluminum alloy laser machine adjustment bracketBracket - Optional: Big Head Electric Eye, 2000p Synchronizer, Synchronizer Bracket, Synchronizer Backwheel, Smoking Machine (Single Head), Optional Lens (Please refer to the table below for details on "Identification Area and Focal Length") |
| Identification area and focal length (in millimeters) | -UV Field Mirror/F80-50 * 50- UV Field Mirror/F100-70 * 70- UV Field Mirror/F160-110 * 110 (Standard) - UV Field Mirror/F210-15 * 150- UV Field Mirror/F290-200 * 200-UV Field Mirror/F380-250 * 250- UV Field Mirror/F420-300 * 300- UV Field Mirror/F470-350 * 350- UV Field Mirror/F525-400 * 400- UV Field Mirror/F750-500 * 500- UV Field Mirror/F840-600 * 600-UV field lens/F1090-800 * 800 |
| Application/Substrate | Flexible PCB boards, plastic materials (such as PE, PVC, PP, PS, POM, PC, acrylic, nylon, etc.), metal materials (such as stainless steel, aluminum, gold, platinum, silver, titanium, brass, etc.), wooden materials such as medium density fiberboard, plywood, and fiberboard, glass* |
| Model selection | - LU105 (5W) - LU110 (10W) - LU115 (15W) - LU120 (20W) |
| laser type | -Laser Tube: - Wavelength: 355nm Solid State UV Laser - Cooling System: Water Cooling (Comes with a water cooling machine as standard) |
| physical properties | -Environmental temperature: 5-40 ° C (41-104 ° F) - Environmental humidity: 10% -90%, no condensation - Electrical requirements: 240 VAC,~50/60 Hz, 1 PH, 0.80 kW-Overall dimensions: Please refer to the dimension diagram for details - Net weight of the whole machine: 18kg |
| Speed (static coding or flight coding) | -Mirror marking speed: maximum millimeter per second * - Production line speed: maximum millimeter per second (15 feet per second)* |
| Marking characteristics | Printing lines: limited only by character height and printable area - industry standard font (Windows) ® TrueType ®) Single line font, machine-readable encoding (OCR, 2D matrix, etc.) - Barcodes: Code128A, Code128B, Code128C, Code39, Code93- QR codes: QR Code, Data Matrix, Aztec Code, Han Xin Code - Graphics, logos, signs, etc. - Straight lines, circles, arcs, reversals, rotating serial numbers and batch numbers - Automatic date, layer, and time coding; Real Time Clock |
| Communication and I/O interface | -UDP, TCP/IP, and RS232 encoders and product detection trigger inputs -3 inputs/2 outputs for start/stop signals, - machine/operation interlock devices, alarm outputs |
*Depending on the size/complexity of the material and coding information. Product and application related matters,Please consult with a representative from LUGSICHER.
Download Materials
Luose LU100 seriesLaser Machine Product Manual
