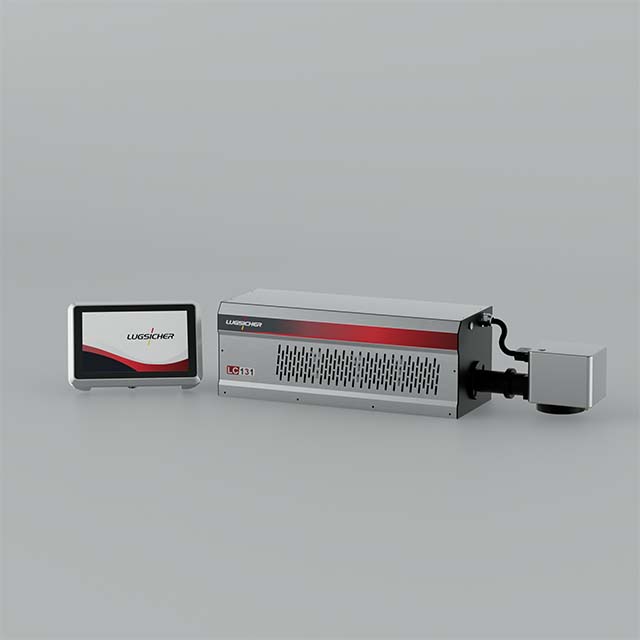

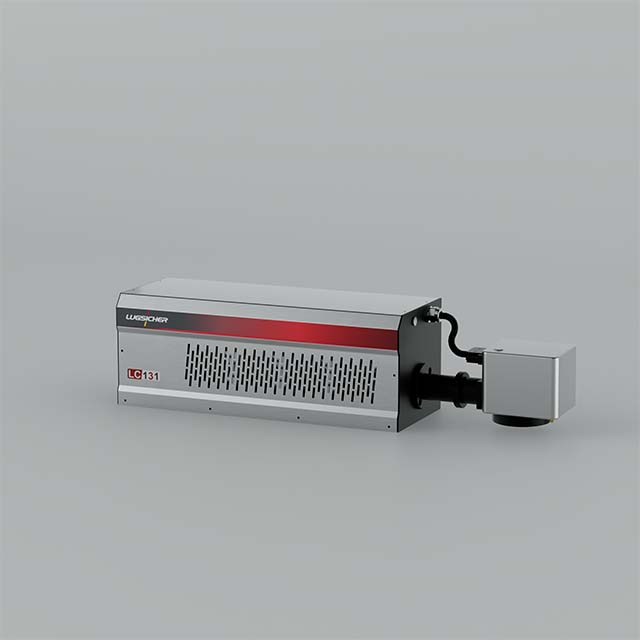

LC130 series CO2 laser marking system
The Luose LC100 series, with sealed laser tubes and precision spot technology as its core, specializes in non-metallic identification in the electronics, food, and pharmaceutical industries. It has dynamic temperature control and stable output, and a sturdy and weather resistant body that can withstand harsh environments,Long term maintenance free guarantee for continuous operation. Intelligent synchronized production line rhythm, precise high-speed carving as one; Modular design is suitable for compact spaces, achieving efficient automation marking with reliable compatibility.
Fully imported laser tube
Aviation grade sealing, effectively extending the service life of laser tubes, fully imported manufacturing process, effectively ensuring the stability of laser beam output
Intelligent interactive system
Automatically activate the path simulation system before printing, plan the marking path in advance to improve printing efficiency. After determining the printing content and parameters, the maximum printing speed is automatically calculated to accurately match the production line capacity
Beam Reflection Technology
Using Lug's Beam Deflection technology to separate laser scanning heads and meet installation requirements in various narrow areas
Sample effect
Label on beverage bottle body
PET
Metal bottle cap marking
Painted metal
Drug board marking
Coated metal
Circuit board marking
electronic component
Wooden board marking

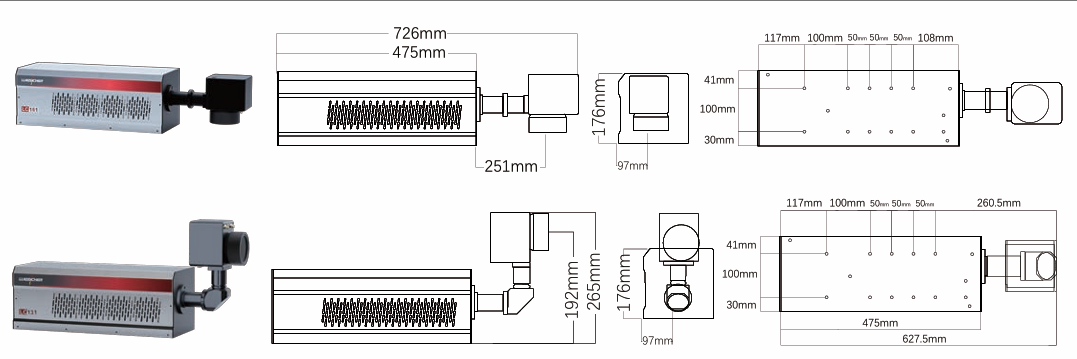

timberProduct dimensions
Specifications

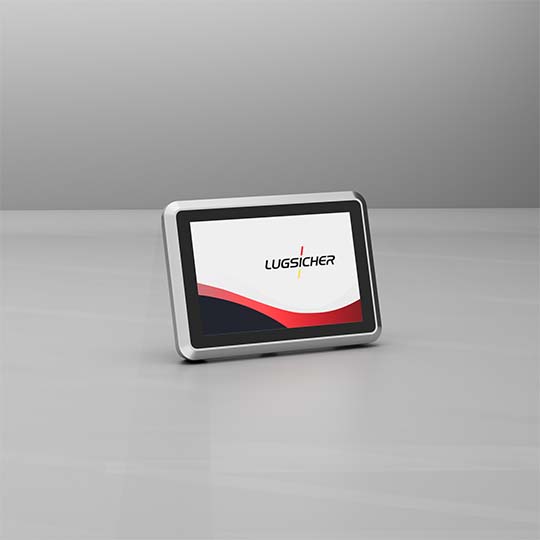

| interface | -Control System: LugTec Operating System - Display Screen Size: 10.1 inches |
|---|---|
| Standard and optional | Standard configuration: Host, 2D aluminum alloy laser machine adjustment bracket, 10.1-inch external touch screen, fiber optic electric eye, universal adjustment electric eye. Standard configuration: Host, 2D aluminum alloy laser machine adjustment bracket, bracket - optional: large head electric eye, 2000p synchronizer, synchronizer bracket, synchronizer back wheel, smoking machine (single head), optional lens (please refer to the table "Identification Area and Focal Length" for details) |
| Identification area and focal length (in millimeters) | -CO2 field mirror/F73-50 * 50- CO2 field mirror/F100-70 * 70- CO2 field mirror/F160-110 * 110 (standard) - CO2 field mirror/F210-140 * 140- CO2 field mirror/F250-175 * 175- CO2 field mirror/F300-210 * 210- CO2 field mirror/F330-250 * 250- CO2 field mirror/F450-300 * 300- CO2 field mirror/F592-400 * 400 |
| Application/Substrate | Can meet the marking needs of the vast majority of non-metallic materials, including ceramics, rubber PVC、PPC、 Acrylic, craft gifts, furniture, leather clothing, non-metallic model molds, food and beverage packaging, tobacco and alcohol packaging, pharmaceutical packaging, printing and plate making, non-metallic nameplates, labels, etc. Among them, carbon dioxide 10.2 μ m is particularly perfect for laminated paper boxes, and carbon dioxide 9.3 μ m is particularly perfect for PET beverage bottle engraving* |
| Model selection | - LC131 (30W-10.6μm) - LC132 (30W-10.2μm) - LC133 (30W-9.3μm) |
| laser type | -Laser tube: Closed CO2 laser - Wavelength: 10.6um, 10.2um, and 9.3um - Cooling system: air-cooled |
| physical properties | -Environmental humidity: 10% -90%, no condensation - Electrical requirements: 240 VAC,~50/60 Hz, 1 PH, 0.80 kW - Machine size: Please refer to the dimension diagram for details - Machine net weight: 21kg |
| Speed (static coding or flight coding) | -Mirror marking speed: up to 13500 millimeters per second * - Production line speed: up to 6900 millimeters per second (22.5 feet per second)* |
| Marking characteristics | Printing lines: limited only by character height and printable area - industry standard font (Windows) ® TrueType ®) Single line font, machine-readable encoding (OCR, 2D matrix, etc.) - Barcodes: Code128A, Code128B, Code128C, Code39, Code93- QR codes: QR Code, Data Matrix, Aztec Code, Han Xin Code - Graphics, logos, signs, etc. - Straight lines, circles, arcs, reversals, rotating serial numbers and batch numbers - Automatic date, layer, and time coding; Real Time Clock |
| Communication and I/O interface | -UDP, TCP/IP, and RS232 encoders and product detection trigger inputs -3 inputs/2 outputs for start/stop signals, - machine/operation interlock devices, alarm outputs |
*Depending on the size/complexity of the material and coding information. Product and application related matters,Please consult with a representative from LUGSICHER.
