Table Title
| interface |
-Control System: LugTec Operating System - Display Screen Size: 10.1 inches |
| Standard and optional |

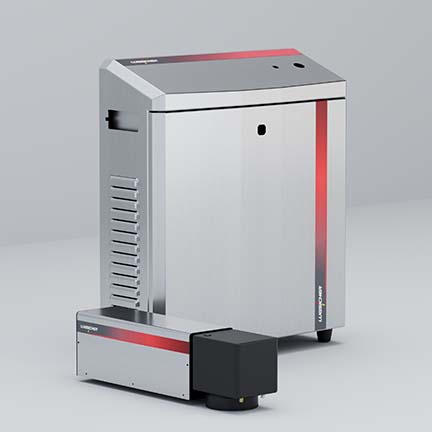

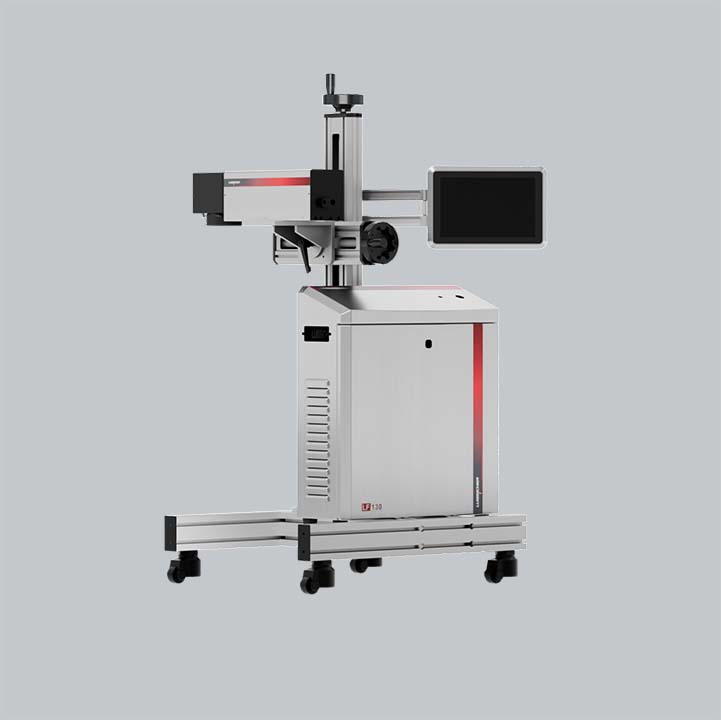

Standard configuration: Host, 2D aluminum alloy laser machine adjustment bracket, 10.1-inch external touch screen, fiber optic electric eye, universal adjustment electric eye. Standard configuration: Host, 2D aluminum alloy laser machine adjustment bracket, bracket - optional: large head electric eye, 2000p synchronizer, synchronizer bracket, synchronizer back wheel, smoking machine (single head), optional lens (please refer to the table "Identification Area and Focal Length" for details) |
| Identification area and focal length (in millimeters) |
-Fiber Field Mirror/F80-50 * 50- Fiber Field Mirror/F100-70 * 70- Fiber Field Mirror/F163-110 * 110 (standard) - Fiber Field Mirror/F210-15 * 150- Fiber Field Mirror/F290-200 * 200- Fiber Field Mirror/F380-250 * 250- Fiber Field Mirror/F420-300 * 300- Fiber Field Mirror/F470-350 * 350- Fiber Field Mirror/F525-400 * 400- Fiber Field Mirror/F680-500 * 500 |
| Application/Substrate |

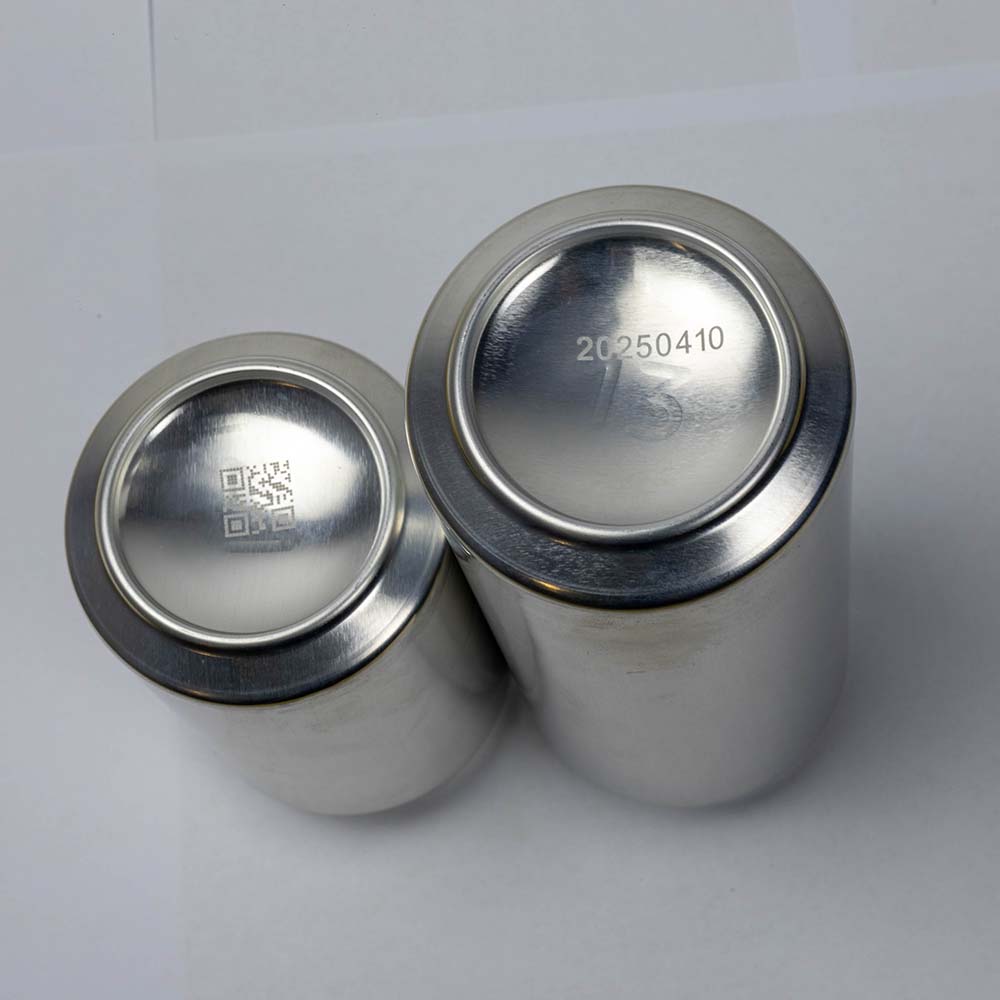

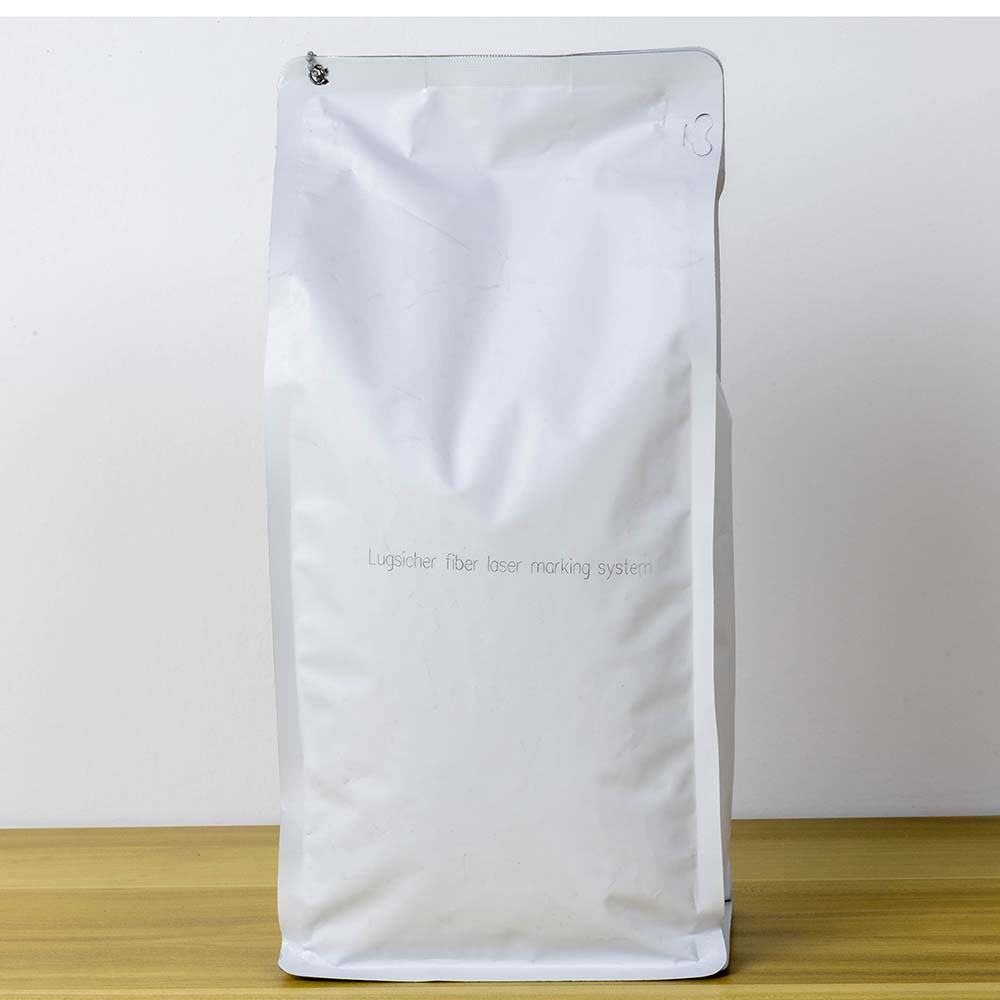

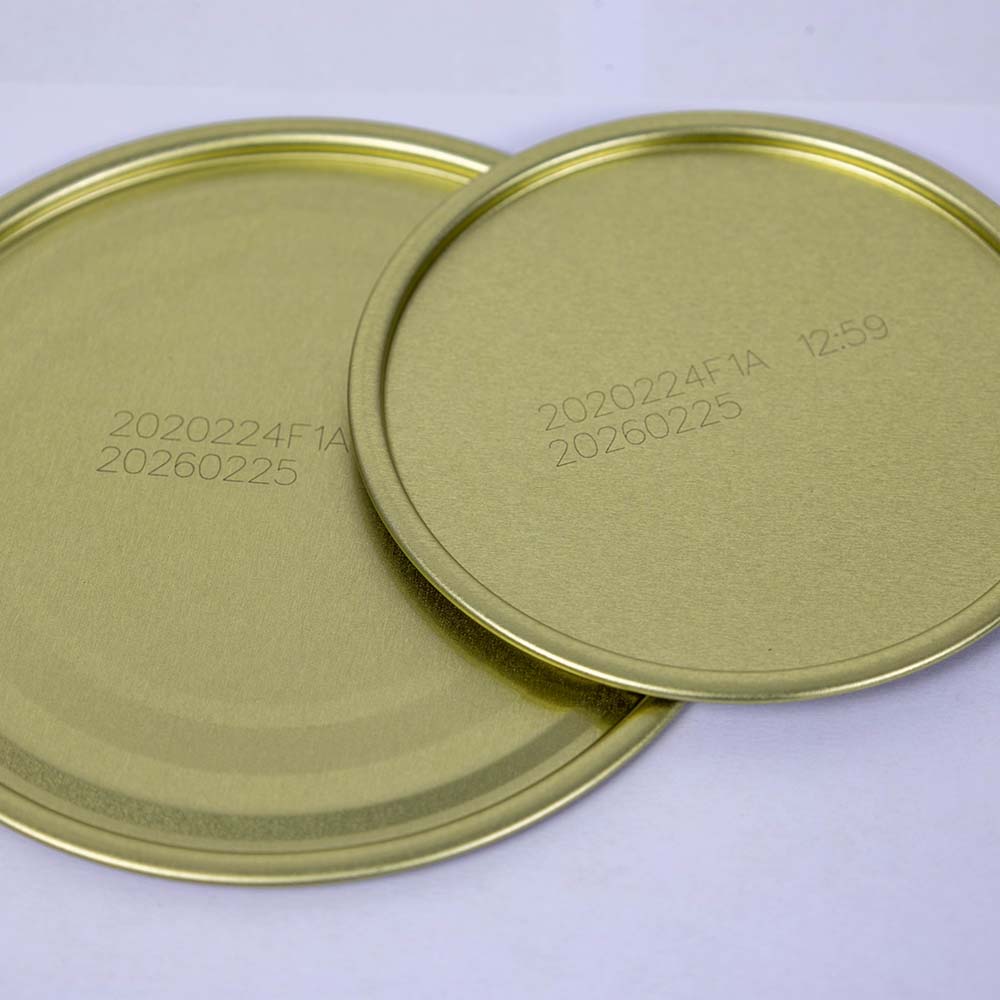

Aluminum or steel packaging materials, other metal materials, flexible packaging, hard plastics or other polymer materials (such as HDPE, PP, PVC, PS, etc.)* |
| Model selection |

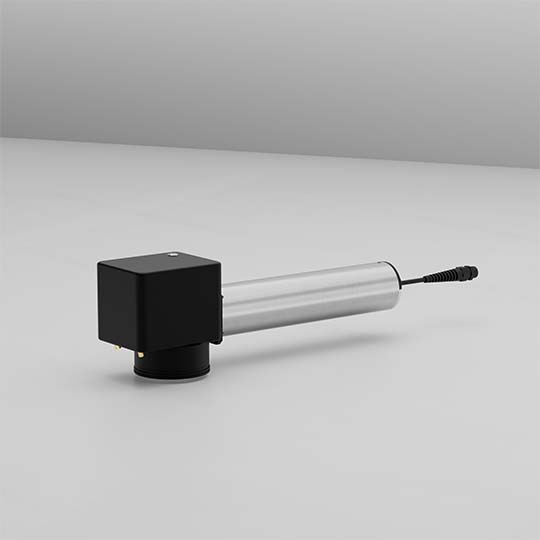

- LF130 (30W) - LF150 (50W) |
| laser type |
-Laser tube: direct electrical modulation semiconductor laser - wavelength: 1055-1070nm - cooling system: air-cooled |
| physical properties |

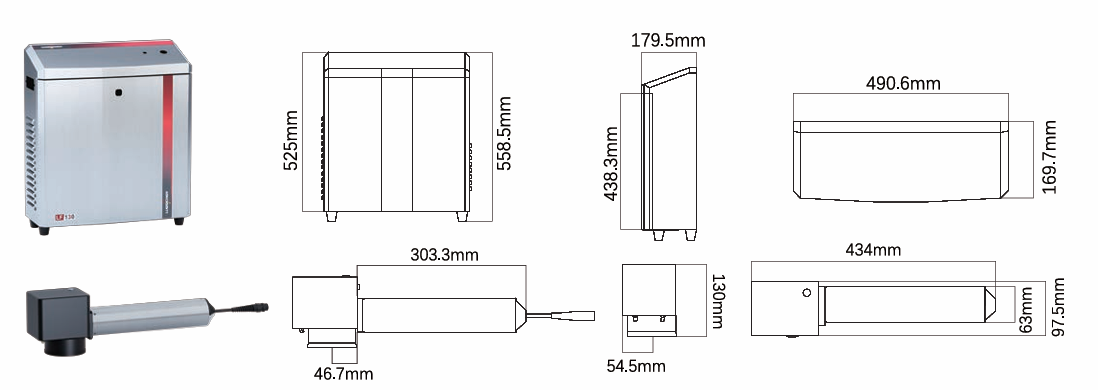

-Environmental temperature: 5-40 ° C (41-104 ° F) - Environmental humidity: 10% -90%, no condensation - Electrical requirements: 240 VAC,~50/60 Hz, 1 PH, 0.80 kW - Machine size: Please refer to the dimension diagram for details - Machine net weight: 25kg |
| Speed (static coding or flight coding) |
-Mirror marking speed: up to 13500 millimeters per second * - Production line speed: up to 6900 millimeters per second (22.5 feet per second)* |
| Marking characteristics |
Printing lines: limited only by character height and printable area - industry standard font (Windows) ® TrueType ®) Single line font, machine-readable encoding (OCR, 2D matrix, etc.) - Barcodes: Code128A, Code128B, Code128C, Code39, Code93- QR codes: QR Code, Data Matrix, Aztec Code, Han Xin Code - Graphics, logos, signs, etc. - Straight lines, circles, arcs, reversals, rotating serial numbers and batch numbers - Automatic date, layer, and time coding; Real Time Clock |
| Communication and I/O interface |
-UDP, TCP/IP, and RS232 encoders and product detection trigger inputs -3 inputs/2 outputs for start/stop signals, - machine/operation interlock devices, alarm outputs |
*Depending on the size/complexity of the material and coding information. Product and application related matters,Please consult with a representative from LUGSICHER.
