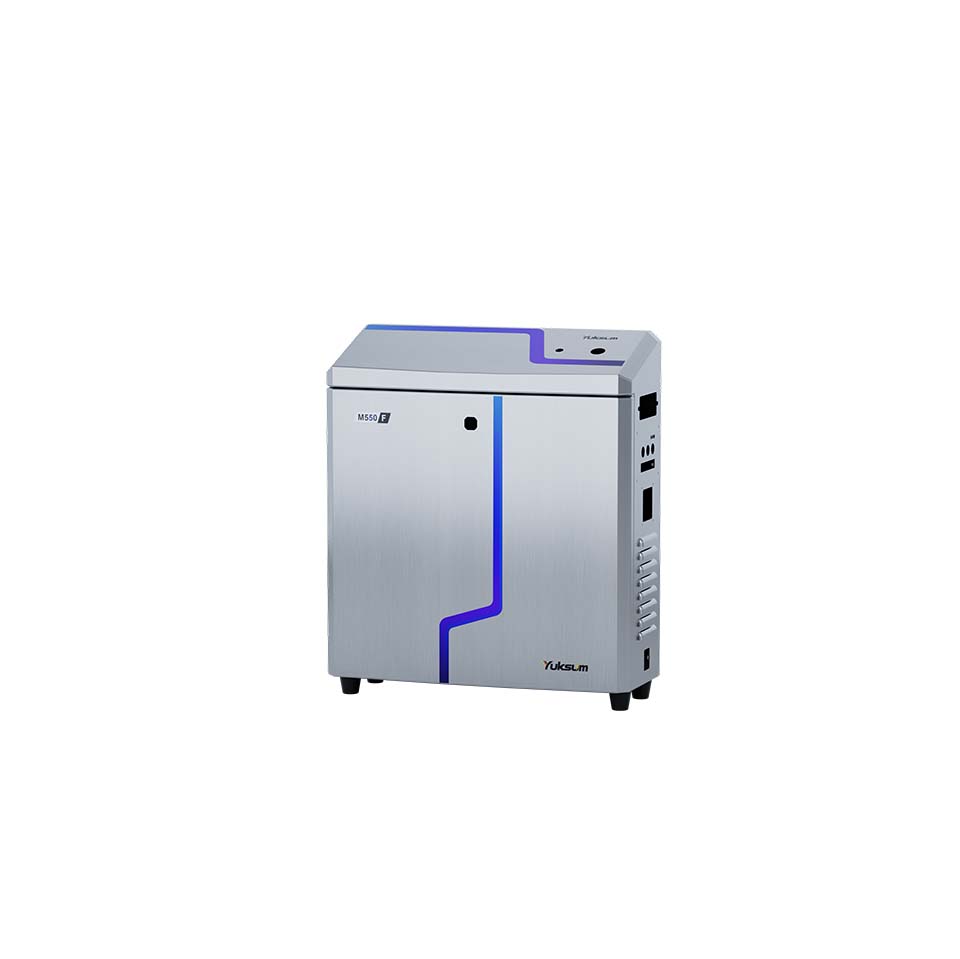

M500F seriesFiber Laser Marking Machine
M500F series, practical on metal, plastic and flexible packagingHigh definition, non erasable markings that meet the needs of beverages and foodThe demand for high-speed production in industries such as pharmaceuticals and electronics. compactCompact and easy to integrate laser without maintenance, helping enterprises achieve high efficiencyEfficiently, accurately, and environmentally friendly automated marking.
modular design
Pre configured interfaces and standardized components, plug and playSupport rapid deployment of the production line within 10 minutes,Adapt to existing equipment without the need for secondary modification
Intelligent interactive system
Some aluminum alloys and plastic surfaces can be polished more effectivelyBlack/Whiter, thereby improving print resolution and enhancingHigh efficiency in reading QR codes
Print color patterns
Color patterns can be printed on stainless steel/titanium alloy or some materials to meet customers' customized needs
Sample effect
Laser color marking
stainless steel
Marking on metal food packaging bags
Aluminum food packaging bags
Aluminum metal marking
can
Circuit board marking
electronic component
Metal cover marking

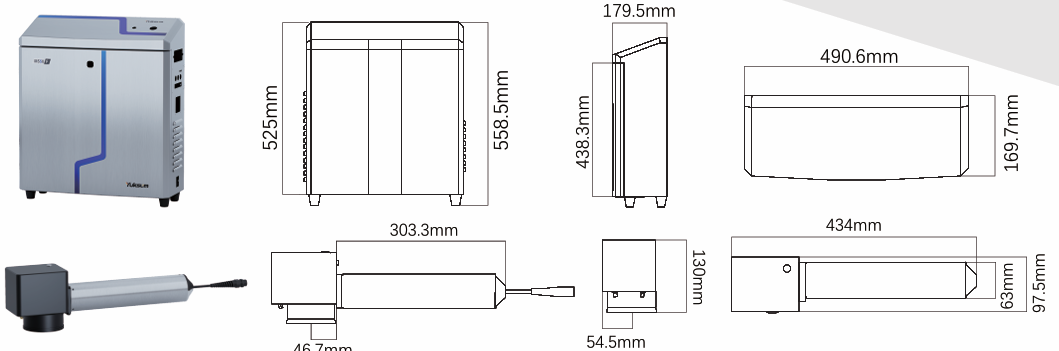

Copper metalProduct dimensions
Specifications
| interface | -Control System: LugTec Operating System - Display Screen Size: 10.1 inches |
|---|---|

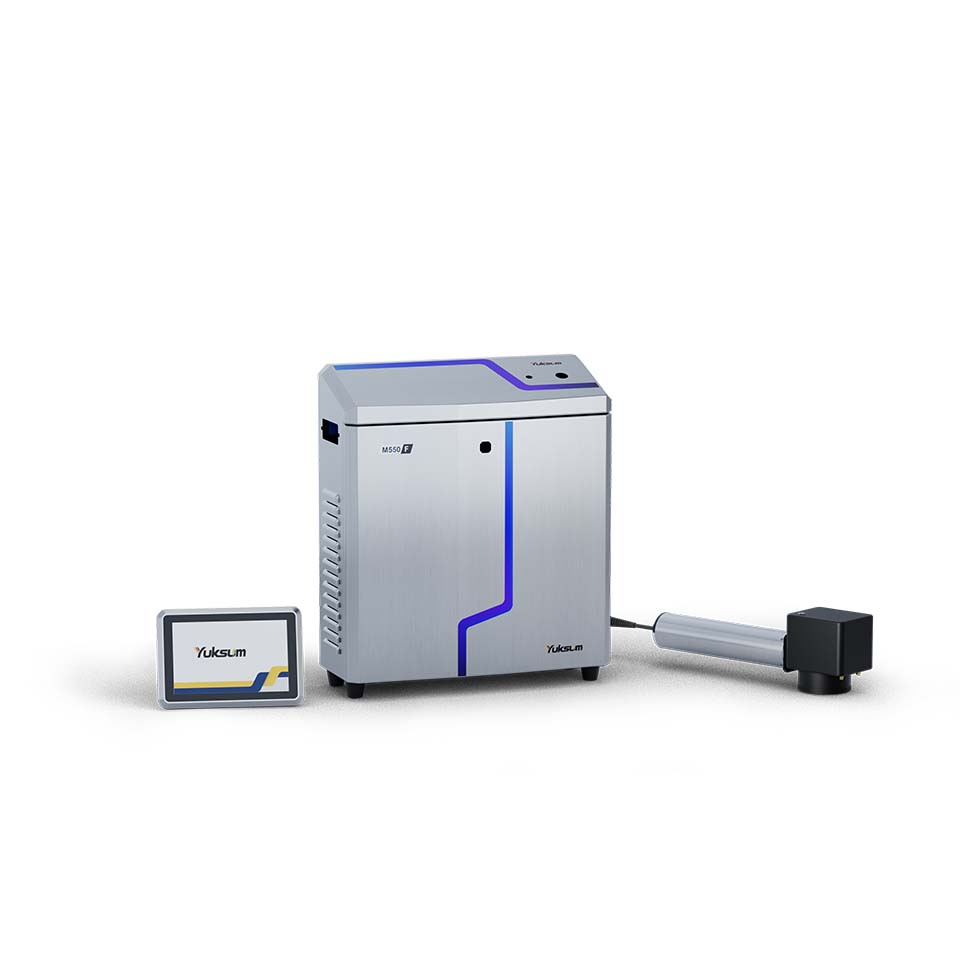

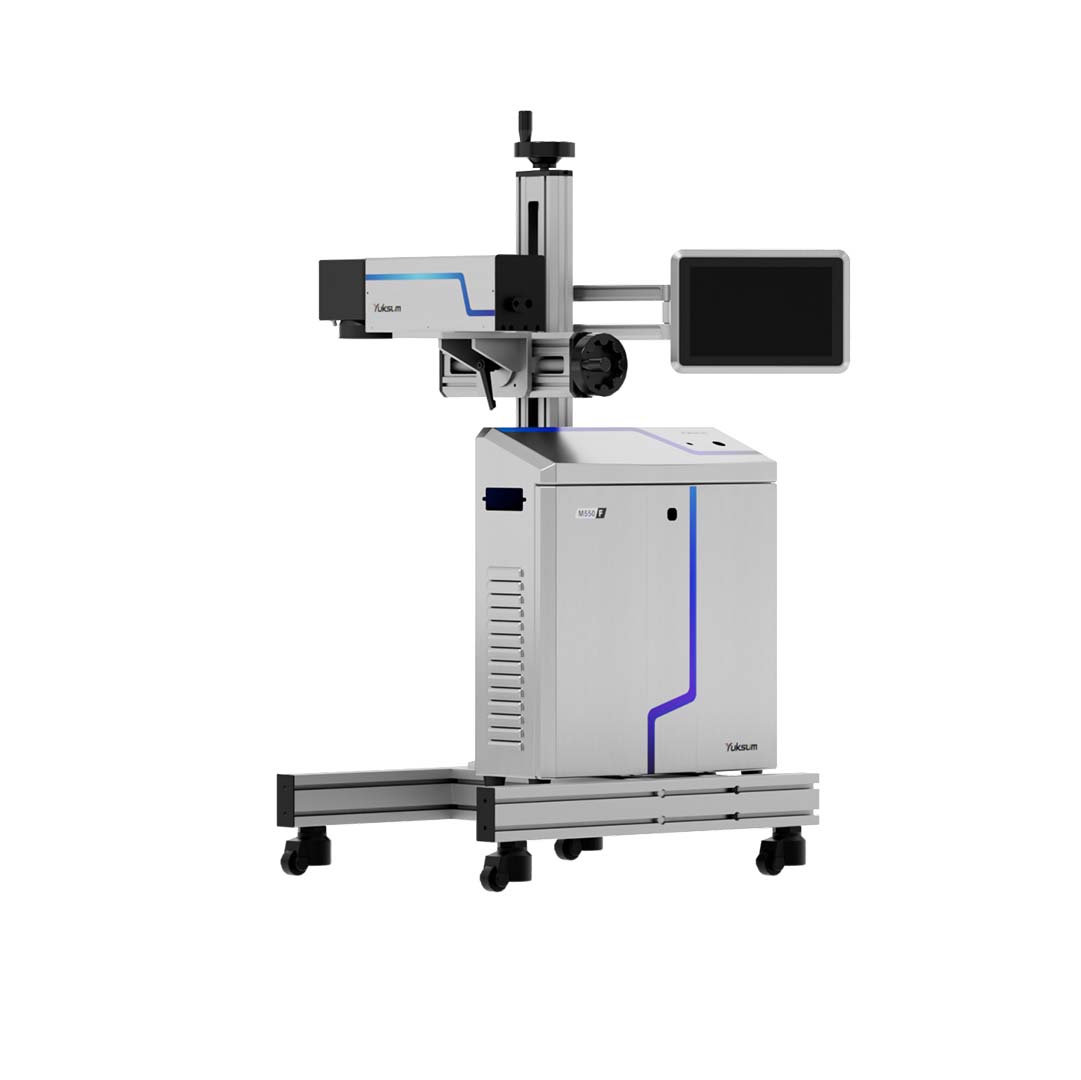

| Standard and optional | Standard configuration: Host, 2D aluminum alloy laser machine adjustment bracket, 10.1-inch external touch screen, fiber optic eye, universal adjustment eyeStandard configuration: Host, 2D aluminum alloy laser machine adjustment bracket, bracket - optional: large head electric eye, 2000p synchronizer, synchronizer bracket, synchronizer coupling, smoking machine (single head), optional lens (please refer to the table below for details on "marked area and focal length") |
| Identification area and focal length (in millimeters) | -Fiber Field Mirror/F80-50 * 50- Fiber Field Mirror/F100-70 * 70- Fiber Field Mirror/F163-110 * 110 (Standard)-Fiber Field Mirror/F210-15 * 150- Fiber Field Mirror/F290-200 * 200- Fiber Field Mirror/F380-250 * 250- Fiber Field Mirror/F420-300 * 300-Fiber Field Mirror/F470-350 * 350- Fiber Field Mirror/F525-400 * 400- Fiber Field Mirror/F680-500 * 500 |
| Application/Substrate | Aluminum or steel packaging materials, other metal materials, flexible packaging, hard plastics or other polymer materials (such as HDPE, PP, PVC, PS, etc.)* |
| Model selection | - M520F (20W) - M530F (30W) - M550F (50W) |
| laser type | -Laser tube: direct electrical modulation semiconductor laser - wavelength: 1055-1070nm - cooling system: air-cooled |
| physical properties | -Environmental temperature: 5-40 ° C (41-104 ° F) - Environmental humidity: 10% -90%, no condensation-Electrical requirements: 240 VAC,~50/60 Hz, 1 PH, 0.80 kW - Overall dimensions: Please refer to the dimension diagram for details - Net weight of the entire machine: 25kg |
| Speed (static coding or flight coding) | -Mirror marking speed: up to 13500 millimeters per second * - Production line speed: up to 6900 millimeters per second (22.5 feet per second)* |
| Marking characteristics | Printing lines: limited only by character height and printable area - industry standard font (Windows) ® TrueType ®) Single line font, machine-readable encoding (OCR, 2D matrix, etc.) - Barcodes: Code128A, Code128B, Code128C, Code39, Code93- QR codes: QR Code, Data Matrix, Aztec Code, Han Xin Code - Graphics, logos, signs, etc. - Straight lines, circles, arcs, reversals, rotating serial numbers and batch numbers - Automatic date, layer, and time coding; Real Time Clock |
| Communication and I/O interface | -UDP, TCP/IP, and RS232 encoders and product detection trigger inputs -3 inputs/2 outputs for start/stop signals, - machine/operation interlock devices, alarm outputs |
*Depending on the size/complexity of the material and coding information. Product and application related matters,Please consult with a representative from LUGSICHER.
Download Materials
Yuksum M500F Laser Machine Product Manual
